MIL-J-26149 Jack, Hydraulic, Aircraft Maintenance, General Specification ForThis specification covers the general requirements for weapon systems hydraulic jacks as used with all types of military aircraft.

Pages 1 - 2 - 3 - 4 - 5 - 6 - 7 - 8 - 9 - 10 - 11 - 12 - 13 - 14 - 15 - 16 - 17 - 18 - 19 - 20 - 21 - 22 - 23 - 24 - 25 - 26 - 27 - 28 - 29 - 30 - 31 - 32

MIL-J-26149E

30 December 1988

SUPERSEDING MIL-J-26149D

12 June 1987

(See 6.6)

MILIT4RY SPECICICATION

JACK, HYDRAULIC, AIRCRAFT MAINTENANCE, GENERAL SPECIFICATION FOR

This specification is approved for use by all Departments and

Agencies of the Department of Defense.

1.   SCOPE

1.1 Scope.   This specification covers the general requirements for weapon systems hydraulic jacks as used with all types of military aircraft.

1.2  Classification.   All aircraft jacks shall be classified as to their design or use.   These classifications shall be in accordance with Table 1.

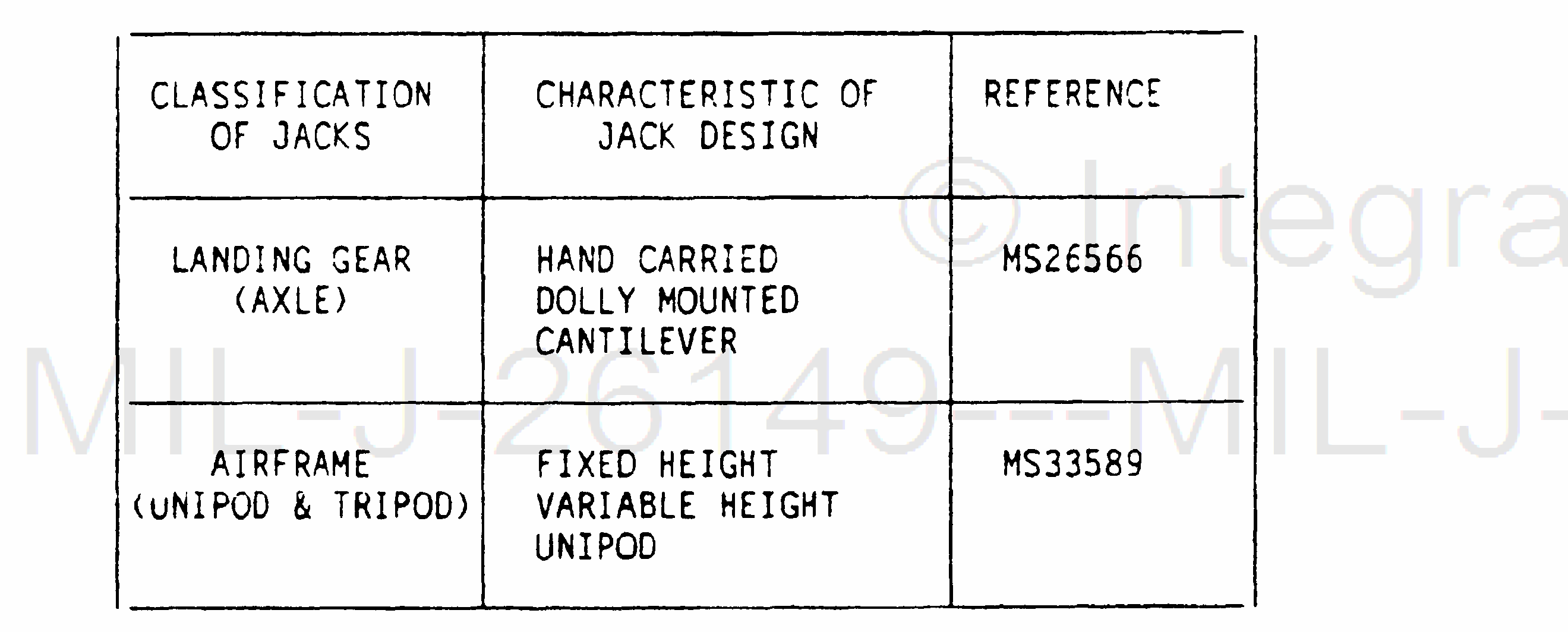

TABLE 1.   Classification of Aircraft Jacks.

1.3  Type  Designation.   All identical aircraft jacks shall be identified by only one type designation.

1.4 Applicability.   This specification shall apply to all aircraft jacks used by the Department of Defense for military aircraft.

AMSC NIA                                                                         FSC 1730

DISTRIBUTION  STATEMENT  A.   Approved for public release; distribution is unlimited.
